NVIDIA Omniverse PoC — Profiling Isaac Sim against Unreal Engine

10 Aug 2026 in Study on Computer Graphics, Vulkan, Directx12, Unreal engine

Why this evaluation

We had a concrete decision to make: for a warehouse-scale robotics digital twin, do we build on Isaac Sim (Omniverse Kit) or stay on Unreal Engine, which the team already knows?

The naive way to answer this is to run both, look at the FPS counter, and pick the faster one. That answer would have been “Unreal, by a mile” — and it would have been wrong, or at least wrong for the reasons people would have assumed. So instead of trusting the frame counter, I captured both runtimes under NVIDIA Nsight Graphics and read the GPU counters.

This post is the write-up of that PoC: what the platform actually is, what the profiler actually showed, and — most importantly — which of those numbers are comparable across two different renderers and which are not. The second part matters more than the first.

---

1. What Omniverse actually is

Before benchmarking it helps to be precise about what is being benchmarked. “Omniverse” is not an engine. It is a microservice runtime (Omniverse Kit) on which applications are composed from extensions.

The relevant architectural properties:

• Extension-based composition. Everything — the viewport, the physics scene, the ROS bridge — is an extension loaded into the Kit runtime. There is no monolithic editor binary the way there is in Unreal.

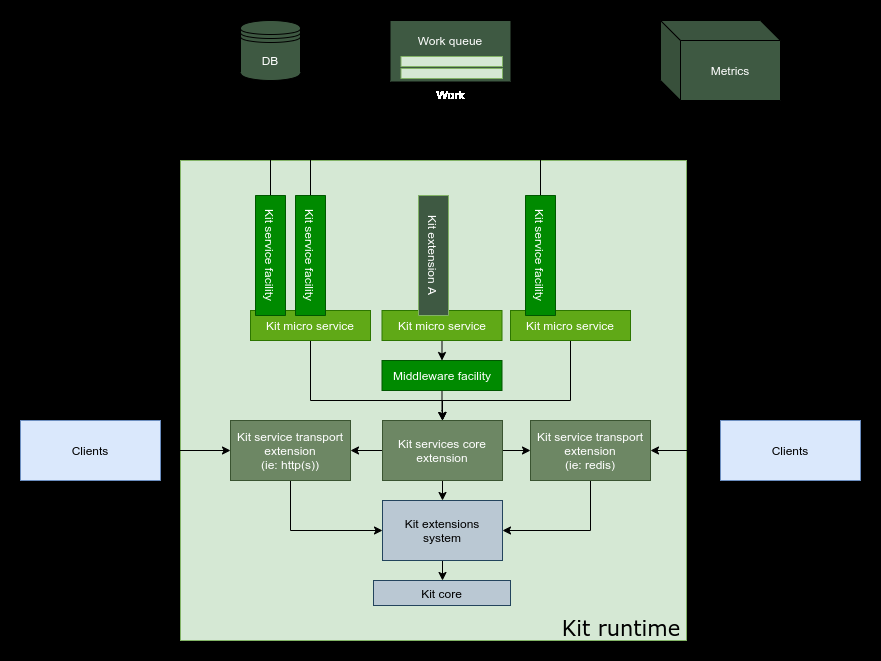

• Kit micro services + service facilities. DB, work queue, metrics, and logging are first-class service facilities. This is what makes headless/fleet deployment (multi-server, cloud) a configuration change rather than a port.
• USD as the scene contract. The stage is OpenUSD, not a proprietary asset database. Interop with Maya/Blender/Unreal goes through USD via Omniverse Connect rather than through import/export.

The pieces that mattered for us

Layer	Component	Why we cared
Core	Kit	The runtime everything else is an extension of
Core	Connect	USD LiveLink into Unreal / Maya / Blender
Core	Nucleus	Cloud-native asset DB + versioning; feeds Omniverse Farm
Core	USD Composer	Authoring/composition environment for the stage
Sim	Isaac Sim	PhysX 5.0 + RTX rendering + native ROS/ROS2, sensor suite (RGB-D, LiDAR, IMU)
Sim	Drive Sim	AV workloads: RT-based LiDAR, ultrasonic, HD maps, weather
AI/ML	Replicator	Synthetic data + domain randomization with segmentation GT
AI/ML	Isaac Lab	RL for manipulation / mobile manipulation / drones
AI/ML	Cosmos	World Foundation Models — predict / transfer / reason
AI/ML	PhysicsNeMo	Neural-operator PDE solvers (CFD, EM)
AI/ML	Earth-2	Climate digital twin

Reference implementations: IsaacSim, IsaacLab, Replicator samples, Cosmos, PhysicsNeMo, earth2studio.

First gap found: neither Kit nor Isaac Sim ships a runtime monitoring extension. There is no built-in equivalent of stat unit / stat gpu that streams structured per-subsystem timings out of the process. Everything below had to be captured externally with Nsight. For a production digital twin this is a real gap — you cannot alert on what you cannot export.

---

2. Test setup

Both runtimes on the same box, same monitor, same scene asset.

Component	Specification
OS	Windows 11
CPU	Intel Core i9-14900K
GPU	NVIDIA GeForce RTX 4090
Scene	Simple_Warehouse/full_warehouse.usd (Omniverse sample)
Robot	Universal Robots UR16e
Profiler	Nsight Graphics (frame capture, 1 frame + 20–30 frame ranges)

Two scenarios:

1. Scenario A — the warehouse scene with an action sequence playing.
2. Scenario B — 50 × UR16e, all executing a RotateZ action simultaneously.

Counters collected: GPU utilization, frame time, SM throughput, VRAM throughput, L2 throughput + sector hit-rate, draw calls, dispatches, SM warp occupancy.

Establishing environment parity (and failing to, honestly)

This was the hardest part of the PoC and it is worth being explicit about, because it bounds every conclusion below.

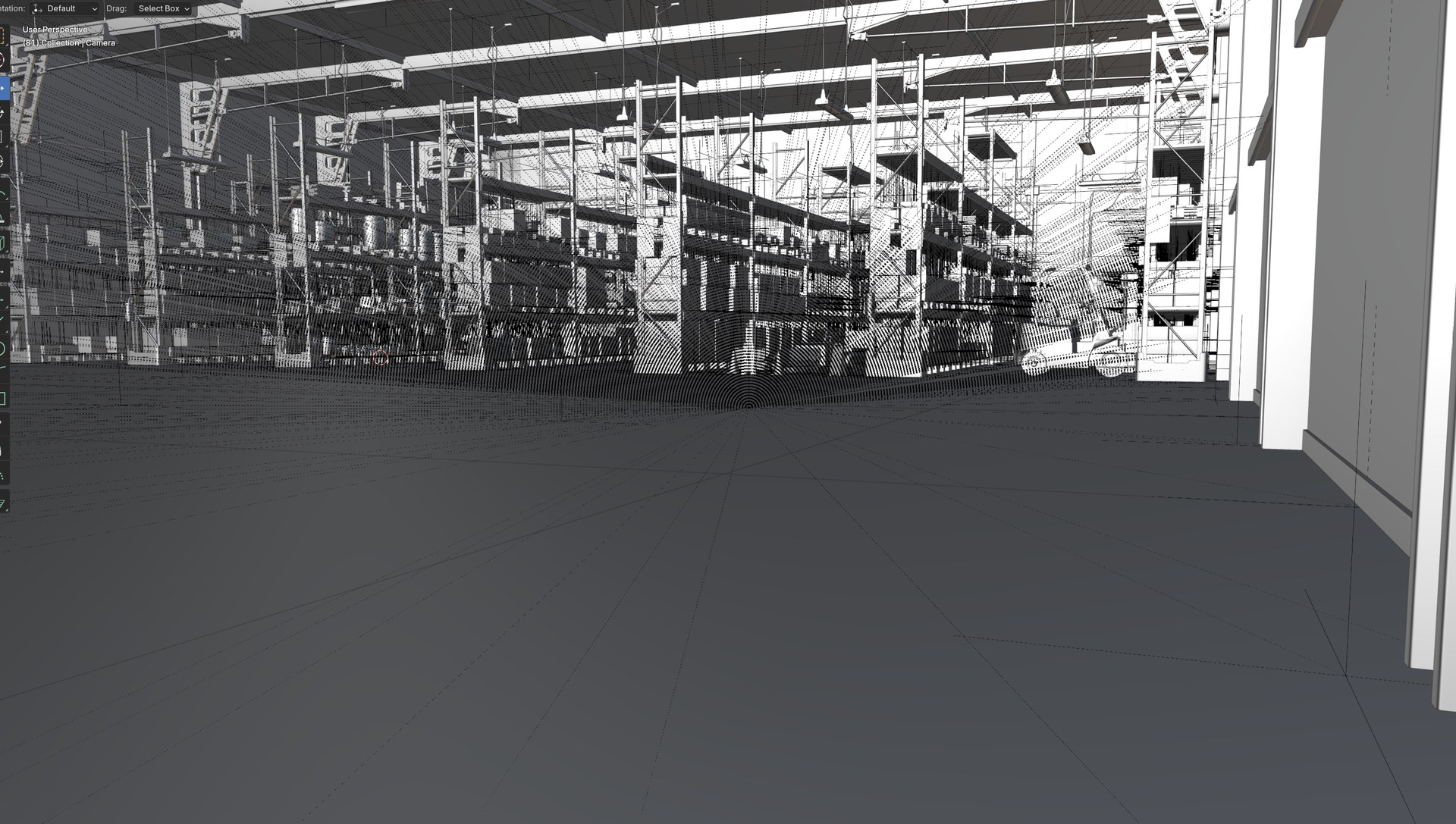

Problem: material loss on export. Getting the same stage into Unreal meant going Isaac Sim → FBX/glTF → Unreal, and material information does not survive that trip. Blender as an intermediate shows what actually crosses the boundary — geometry, and not much else:

Mitigation. Rather than fight it, we levelled down to the lowest common denominator:

• Stripped materials in Isaac Sim so both sides render untextured geometry.
• Standardised lighting on Rect Lights.

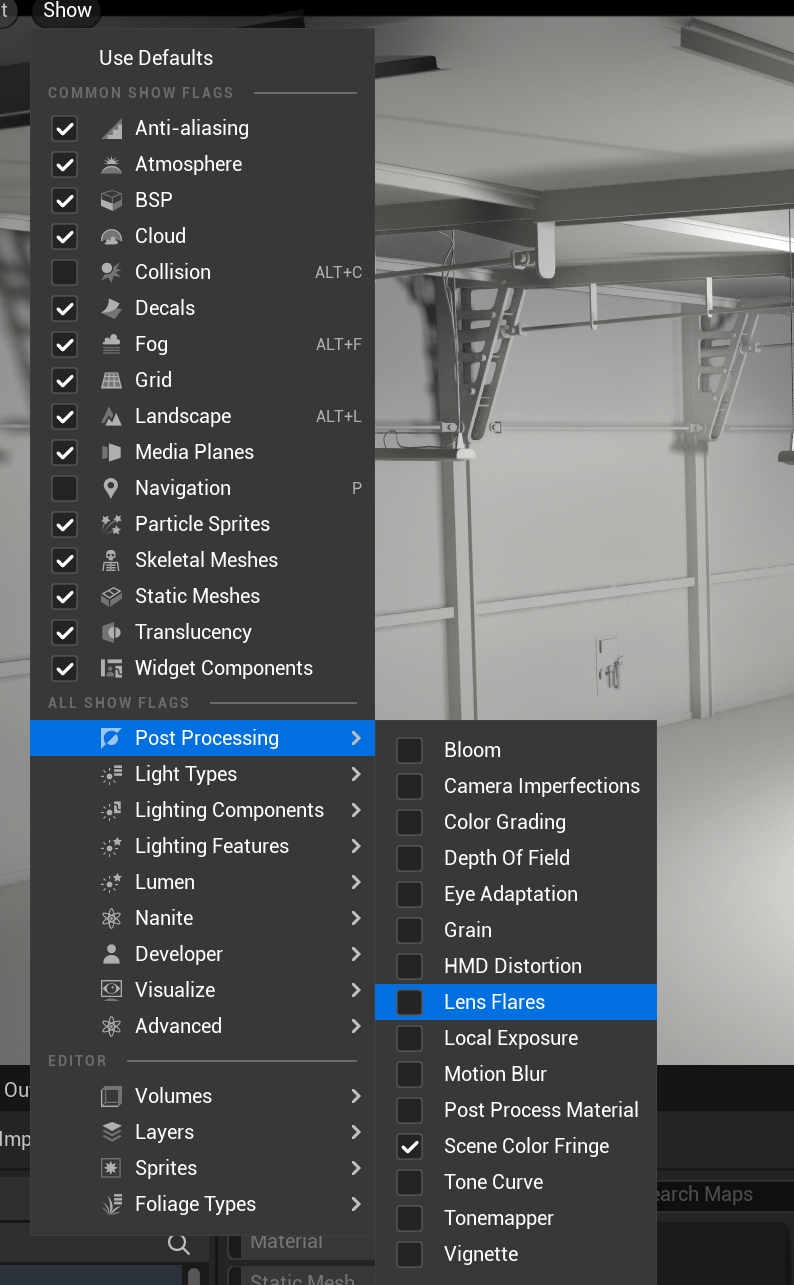

• Disabled post-processing in Unreal via Show Flags — Bloom, Color Grading, DoF, Eye Adaptation, Motion Blur, Tonemapper, Vignette all off.

Resulting baselines:

Unreal Engine	Isaac Sim

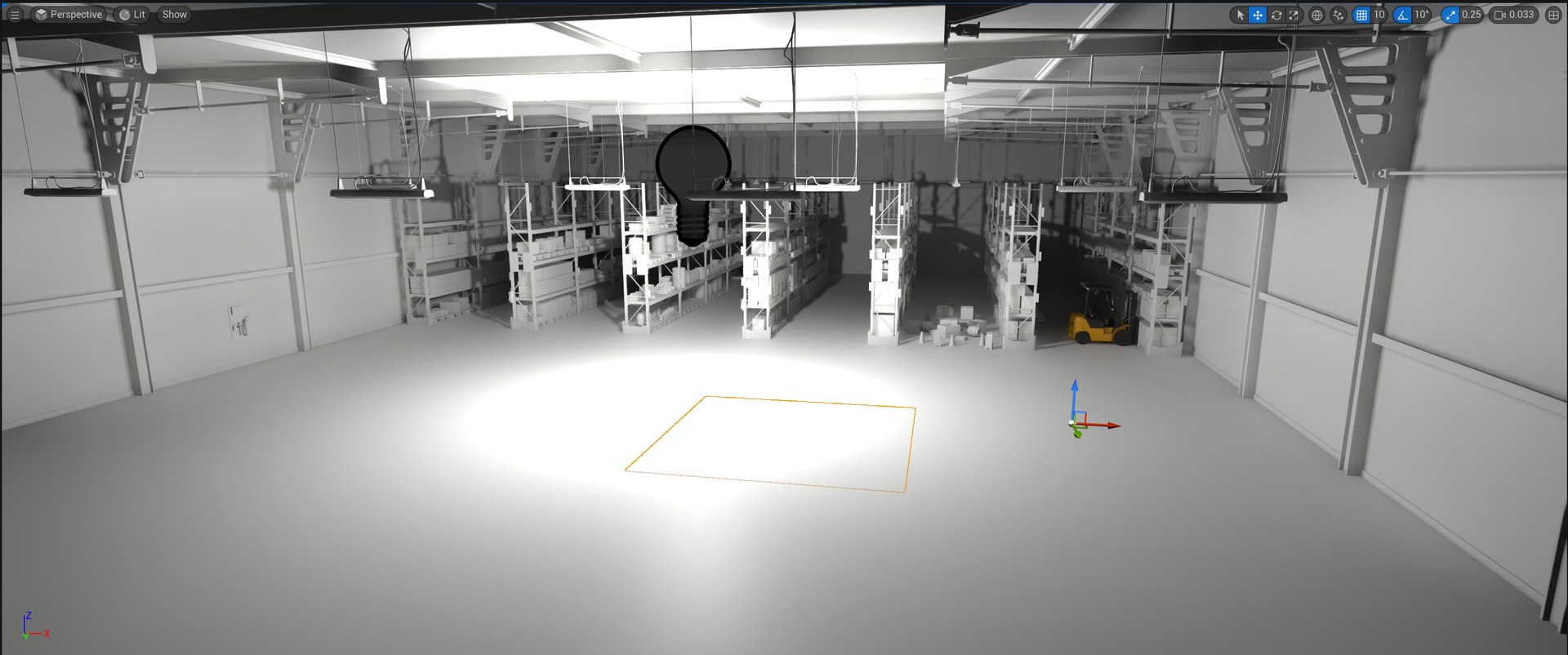

Caveat I want on the record: the captures were ultimately taken with Point Light in Unreal and Rect Light in Isaac Sim. That is not a cosmetic difference. A point light is an analytic delta-distribution light; a rect light is an area light that has to be sampled. Under a ray-traced integrator that changes the shading cost per pixel directly. So the numbers below are a comparison of two configured pipelines, not of two engines under identical optical conditions. Read them as “what each stack does when set up the way its own defaults push you,” not as a controlled A/B.

---

3. How to read these counters

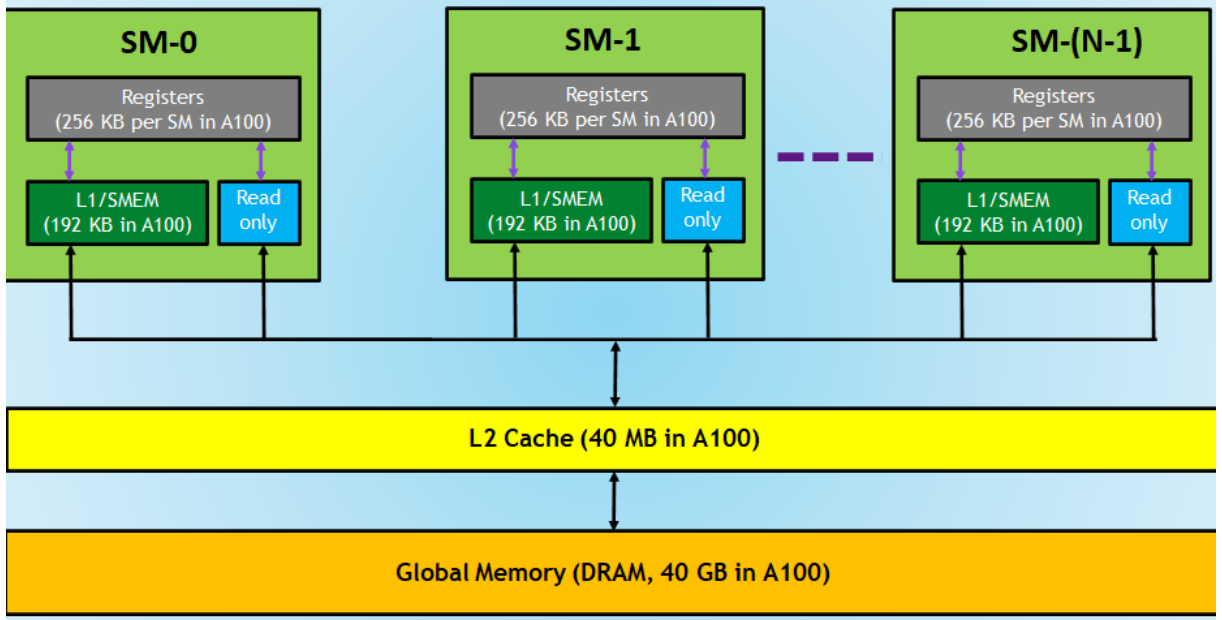

One diagram is worth keeping in mind for the whole results section, because every number below is a statement about one level of this hierarchy:

• SM Throughput — how hard the shader cores are working. Instructions issued vs. peak issue rate.
• SM Warp Occupancy — how many of the SM’s warp slots hold a resident warp. (Active Warps / Theoretical Max Warps) × 100. On Ada the theoretical max is 48 warps/SM. Nsight reports “Unallocated Warps in Active SMs” as a separate row — that row is empty slots, not work.
• L2 Throughput / Sector Hit-Rate — how much traffic the last-level cache is absorbing. High throughput with a high hit-rate means the working set fits and is being hammered; a hit-rate drop means you fell through to DRAM.
• VRAM Throughput — DRAM bandwidth, split read/write. The read/write ratio is a fingerprint of the workload.

The interpretive rule I applied throughout: if SM throughput is low while VRAM/L2 throughput is high, the frame is latency- or bandwidth-bound, not math-bound. Low on both means the GPU is waiting on someone else — usually the CPU.

---

4. Scenario A — warehouse scene with action sequence

	Unreal Engine	Isaac Sim
Light setup	Point Light	Rect Light
FPS (before play)	92.80 – 107.21	76.91 – 116.50
FPS (play & run)	75.59 – 104.21	48.34 – 60.15
Avg FPS	100.01 → 89.90	96.71 → 54.25
Frame time (capture)	8.29 ms	14.12 ms
API	D3D12	Vulkan
GPU contexts	1 × D3D12 (8.86 ms)	3 × VkContext (8.29 + 1.07 + 3.65 ms)
Dispatches	2 + 7 + 2 = 11	22 compute + 7 ray tracing + 15 OptiX/CUDA
Draw calls (vkCmdDrawIndexed / equiv.)	8 + 2 + 8 + 1 = 19	2 (UI only)
SM throughput	6.4 %	12.9 %
VRAM throughput	8.8 % (R 5.5 / W 3.2)	34.0 % (R 10.5 / W 23.5)
L2 throughput	9.9 % (hit-rate 82.6 %)	32.4 % (hit-rate 90.1 %)
Occupancy — unallocated	6.8 warps / 14.2 %	29.0 warps / 60.5 %
Occupancy — compute	4.0 warps / 8.3 %	11.2 warps / 23.4 %
Occupancy — pixel	0.6 warps / 1.3 %	0.3 warps / 0.7 %
Occupancy — vtx/tess/geom	0.1 warps / 0.2 %	0.0 warps / 0.0 %

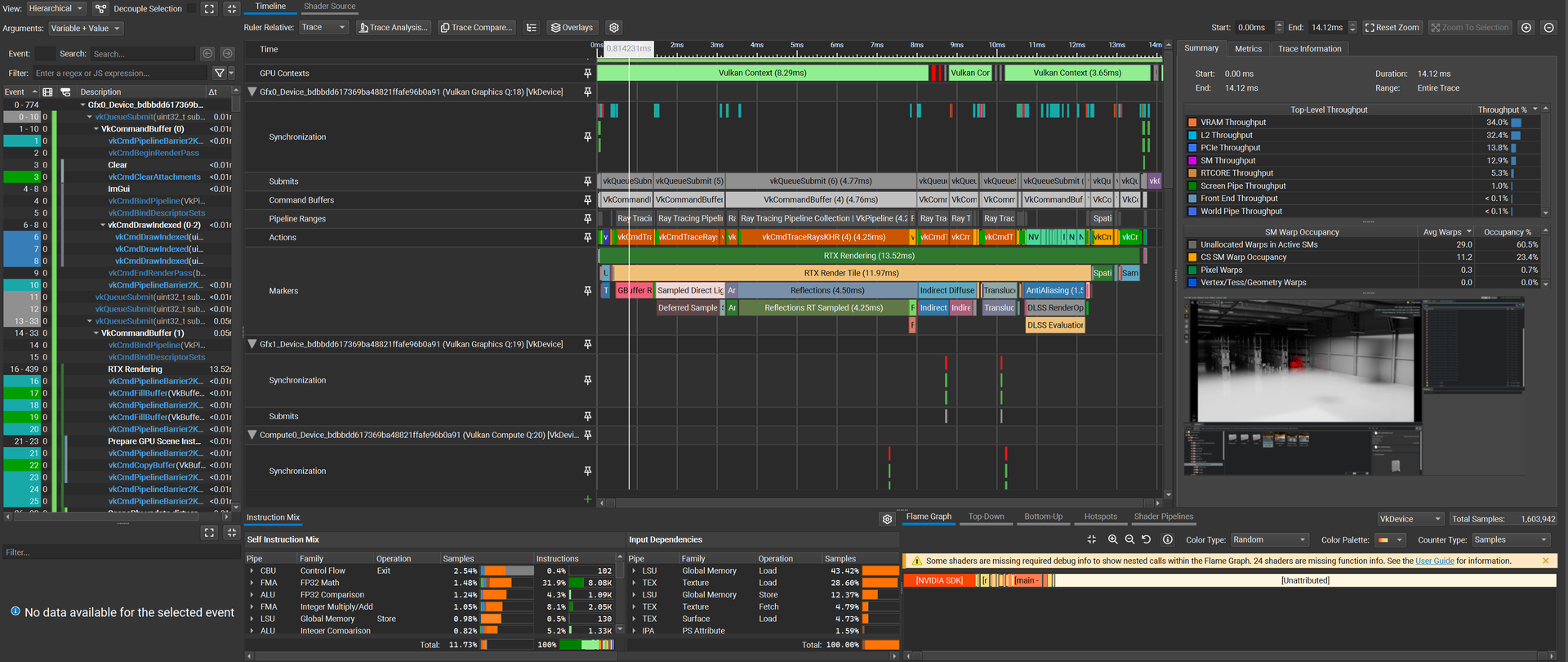

Unreal capture

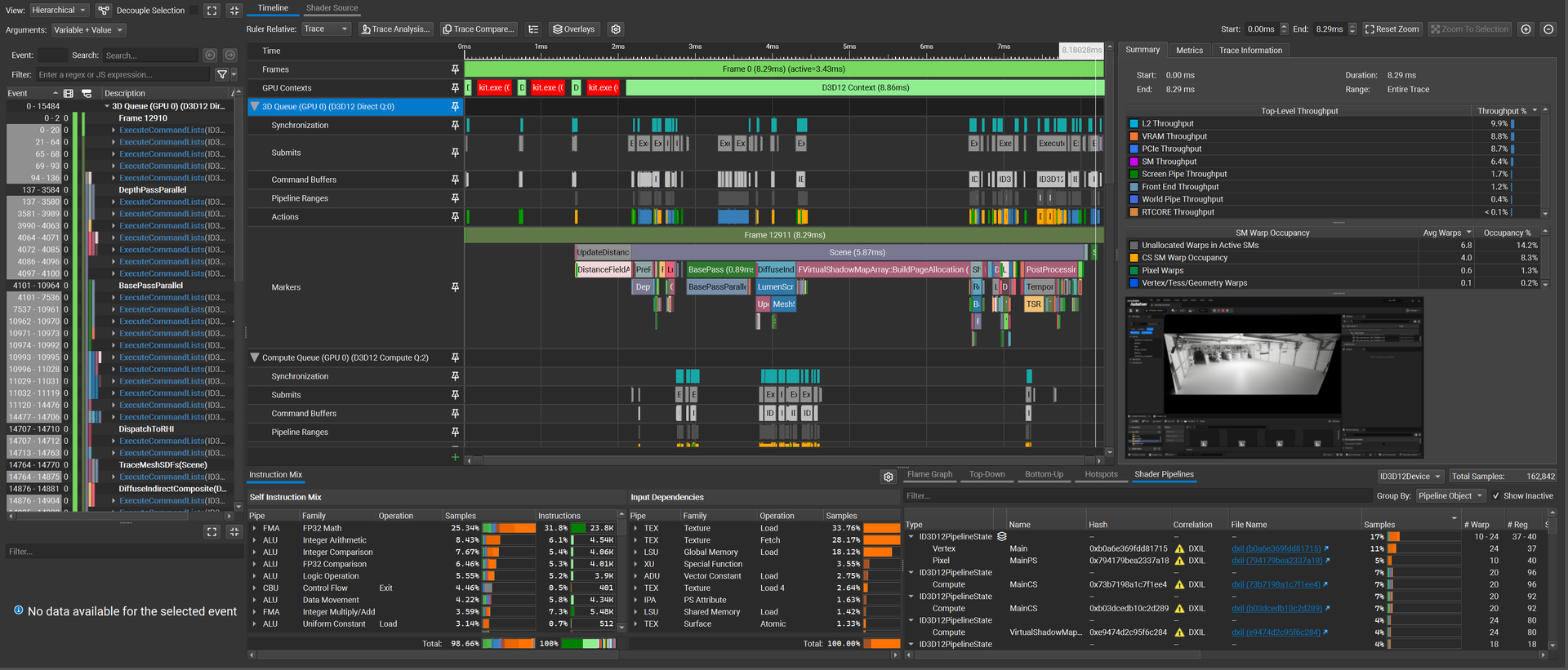

A textbook deferred frame. Scene occupies 5.87 ms of the 8.29 ms frame, and inside it the marker track reads DistanceFieldA… → BasePass (0.89 ms) → FVirtualShadowMapArray::BuildPageAllocation → DiffuseIndirect → LumenScreen… → PostProcessing → TSR. Note what that spells out: Lumen and Virtual Shadow Maps are on. Unreal here is not doing “plain rasterization” — it is running its own software-traced GI. The async compute queue is live in parallel.

Isaac Sim capture

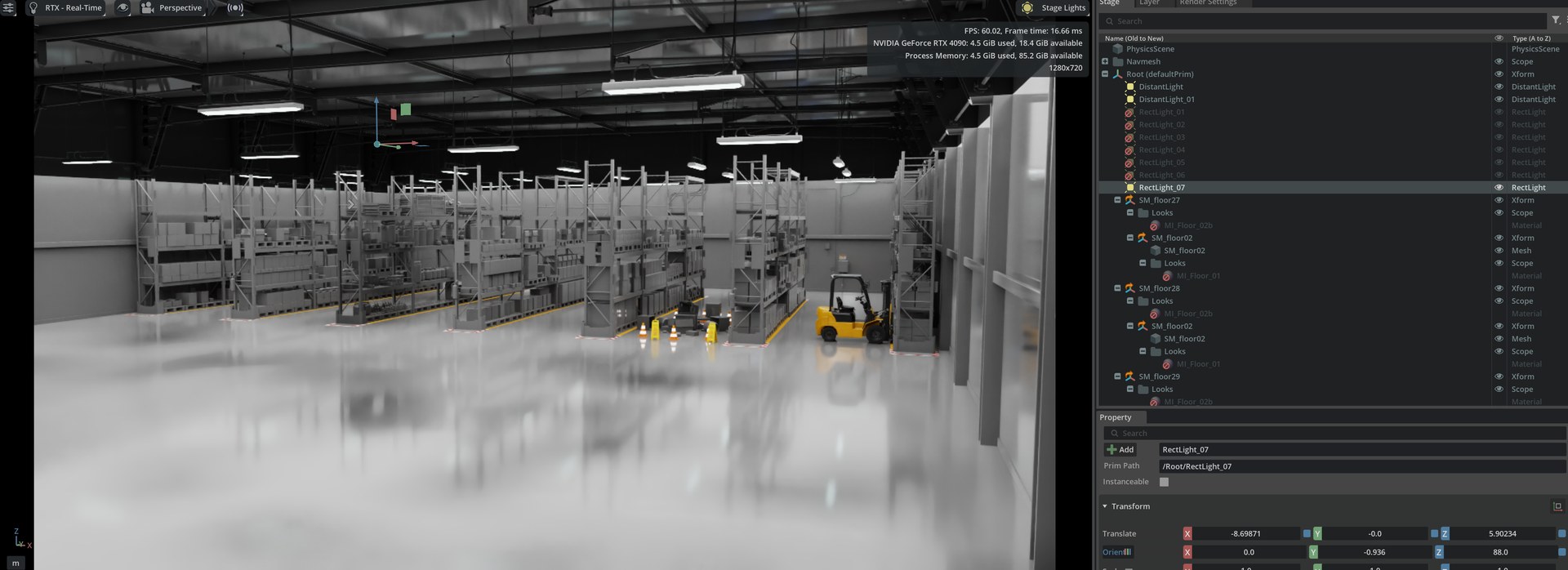

Structurally different. Three Vulkan contexts with batched submission:

1. Geometry / direct — G-buffer, sampled direct lighting, reflections
2. Indirect diffuse — global illumination
3. Post — translucency, anti-aliasing (DLSS SR / TAA)

The marker track is the interesting part. RTX Rendering is 13.52 ms of the 14.12 ms frame, RTX Render Tile is 11.97 ms of that, and inside it:

• Reflections — 4.50 ms
• Reflections RT Sampled — 4.25 ms
• then Indirect Diffuse, Translucency, AntiAliasing, DLSS RenderOp, DLSS Evaluation

Ray-traced reflections alone are ~33 % of the frame. That is the single largest line item, and it is a quality setting, not a structural property of Isaac Sim. Actions: raise the roughness cutoff so glossy surfaces fall back to a cheaper probe, reduce reflection sample count, or cap reflection bounce depth. The warehouse floor in that scene is a mirror — visible in the viewport screenshot — and mirrors are exactly what makes RT reflections expensive.

Also worth noting: vkCmdTraceRaysKHR (4) shows at 4.25 ms, and RTCORE throughput is only 5.3 %. The RT cores are not saturated. The cost is not in triangle-ray intersection; it is in the incoherent memory access that BVH traversal and reflection-ray shading generate. Which the VRAM counter confirms — 34 % throughput, and write-dominant (23.5 % write vs 10.5 % read), the signature of a denoise/accumulate pipeline writing out radiance and history buffers every frame.

---

5. Scenario B — 50 robots

	Unreal Engine	Isaac Sim
Robots	50 × UR16e, RotateZ	50 × UR16e, RotateZ
FPS (play & run)	93.89 – 104.54	42.15 – 49.42 (66.67 when few robots in frustum)
Frame time	7.67 ms	15.45 ms
GPU contexts	2	4
Dispatches	96	24 compute + 7 ray tracing + 15 OptiX/CUDA
Draw calls	10,733 (incl. UI)	2 (UI only)
SM throughput	11.9 %	11.9 %
VRAM throughput	11.5 % (R 3.6 / W 7.8)	26.9 % (R 7.6 / W 19.2)
L2 throughput	20.6 % (hit-rate 95.5 %)	27.2 % (hit-rate 91.9 %)
Occupancy — unallocated	36.9 warps / 76.9 %	22.6 warps / 47.1 %
Occupancy — pixel	5.9 warps / 12.2 %	0.0 warps / 0.1 %
Occupancy — vertex	3.5 warps / 7.3 %	0.0 warps / 0.0 %
Occupancy — compute	0.0 warps / 0.0 %	1.8 warps / 3.7 %
Occupancy — unattributed	0.0 warps / 0.0 %	5.4 warps / 11.2 %

Three things in this table are not what they look like

(a) 10,733 vs 2 draw calls is not an efficiency result.

This is the number most likely to be quoted out of context, so: Isaac Sim issues 2 draw calls because the scene is not rasterized at all. Geometry is resolved through ray-tracing acceleration structures — TLAS/BLAS built once, then traversed by vkCmdTraceRaysKHR. Instanced geometry never passes through vkCmdDrawIndexed. The 2 draw calls that do appear are the ImGui overlay.

Draw-call count is therefore not a comparable metric across these two renderers. It measures a submission model that only one of them uses. Comparing them is a category error.

(b) 10,733 draw calls in Unreal is a config problem, not an engine property.

50 robots → ~215 draw calls per robot. A UR16e has 6–7 links. That means the imported meshes are being submitted per-section with no instancing and no Nanite, which is exactly what you get from a raw FBX import chain that also lost its materials. The occupancy row corroborates it: 76.9 % of warp slots unallocated with pixel warps at 12.2 % and vertex at 7.3 % — SMs are active almost the whole frame but mostly empty, the classic signature of many small draws with poor warp packing. Enable instancing or Nanite on those meshes and this number should collapse.

(c) Unreal got faster with 50 more robots (8.29 → 7.67 ms). Treat that as a methodology flag, not a finding.

An engine does not speed up when you give it 500× the draw calls. The likely explanation is that the two captures do not share a camera pose or view frustum — and the Scenario A capture, at 8.29 ms with SM throughput at 6.4 % and everything else in single digits, looks like a frame where the GPU was largely idle waiting on present or CPU submission. The Scenario B capture shows the GPU genuinely busy (SM 11.9 %, L2 20.6 % at a 95.5 % hit-rate). Different bottlenecks, so the two frame times are not on the same scale. Fixing this needs a locked camera and a fixed-path flythrough on both sides.

What actually costs time in each frame

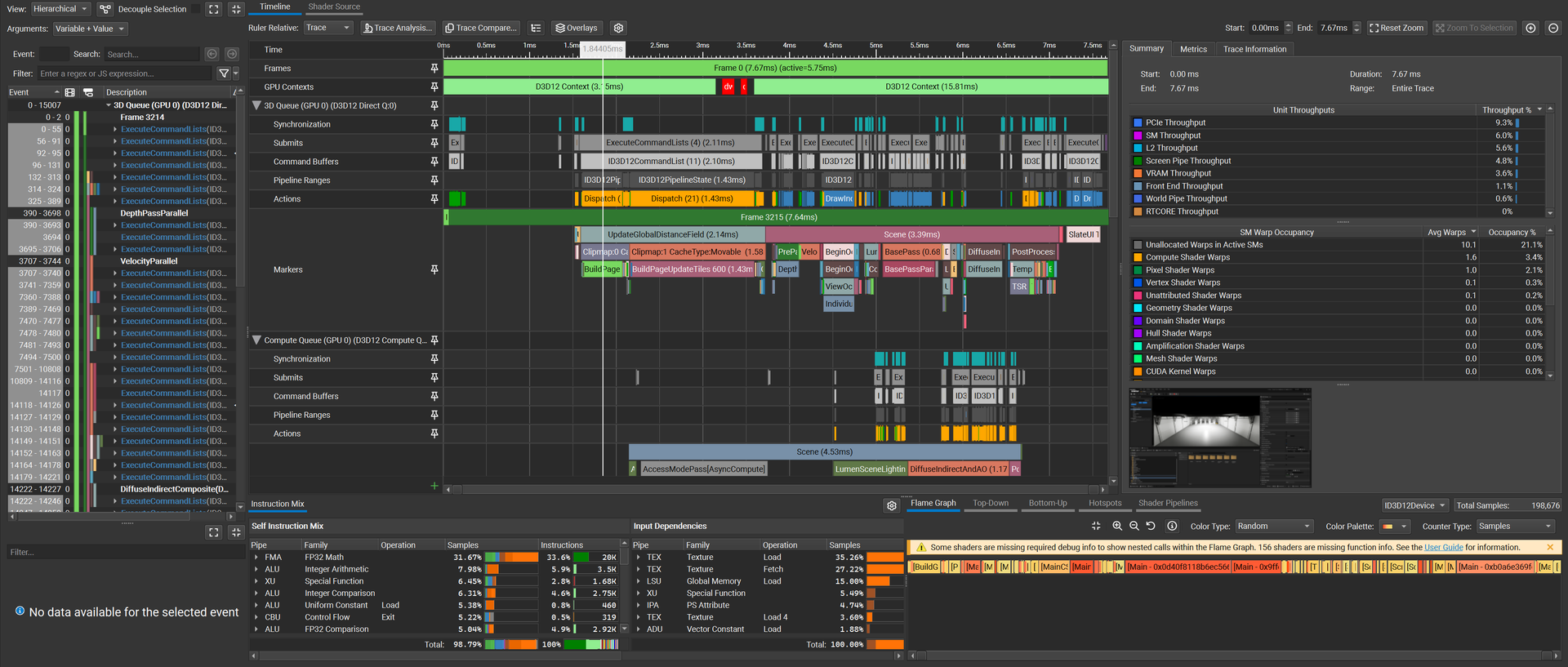

Unreal, 50 robots (7.67 ms frame, 5.75 ms active):

• UpdateGlobalDistanceField — 2.14 ms, with Clipmap: 0 / Clipmap: 1 CacheType:Movable (1.58 ms) and BuildPageUpdateTiles 600 (1.43 ms)
• Scene — 3.39 ms on the 3D queue, plus 4.53 ms on the async compute queue (AccessModePass[AsyncCompute], LumenSceneLighting, DiffuseIndirectAndAO 1.17 ms)

That first line is the real story on the Unreal side: 28 % of the frame is rebuilding Lumen’s global signed distance field, because 50 articulated robots marked Movable dirty the SDF clipmaps every single frame. This is a cost that scales with moving geometry, not with geometry. If we did not need Lumen GI for this workload — and for a robotics twin we largely do not — turning it off recovers roughly a third of the frame outright.

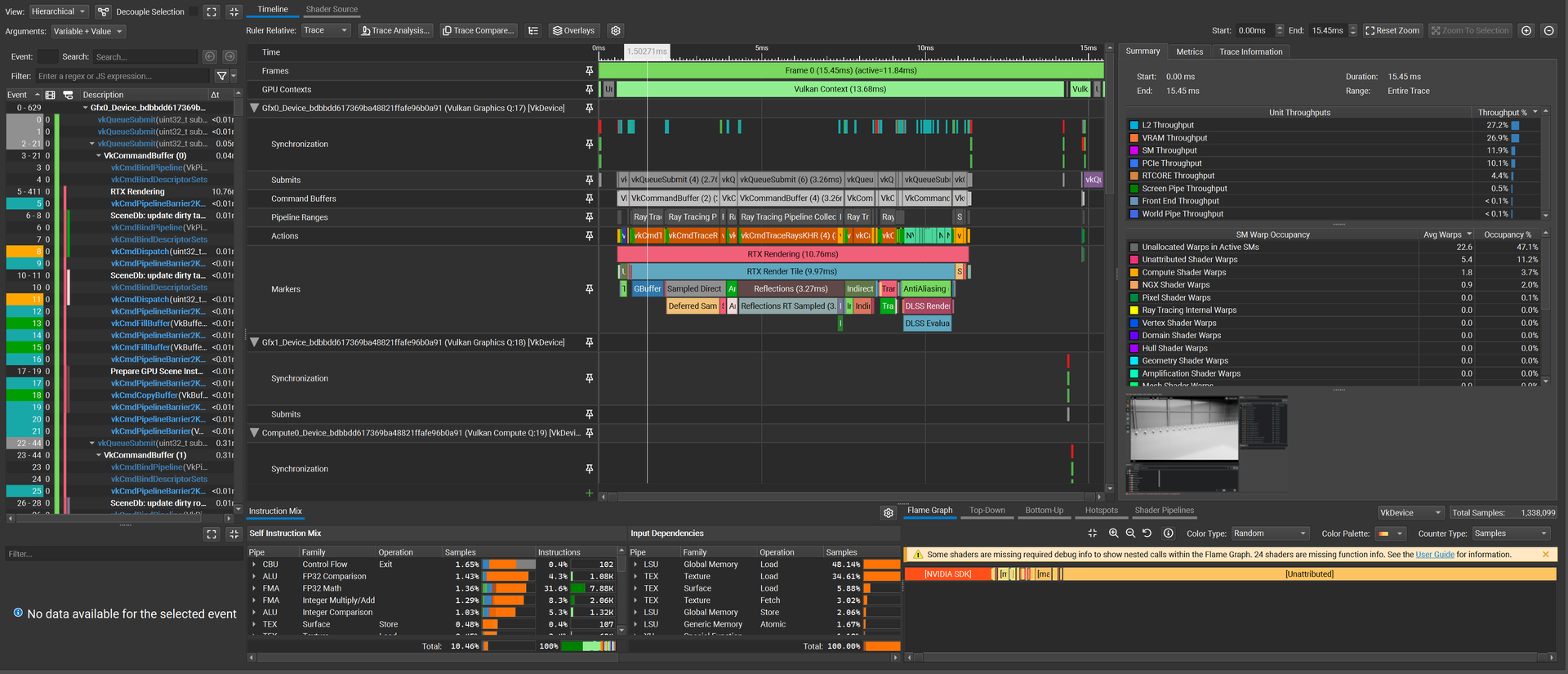

Isaac Sim, 50 robots (15.45 ms frame, 11.84 ms active):

• RTX Rendering — 10.76 ms, RTX Render Tile — 9.97 ms
• Reflections — 3.27 ms, Reflections RT Sampled — ~3.0 ms
• then Indirect, AntiAliasing, DLSS Render / DLSS Evaluation

Compare against Scenario A: RTX rendering went 13.52 ms → 10.76 ms while the scene gained 50 articulated robots. Isaac Sim’s render cost is essentially independent of robot count here. It is dominated by a fixed per-pixel ray-tracing budget — reflections above all — not by scene complexity. That is the expected scaling behaviour of a ray tracer: cost tracks pixels and ray depth, and geometry only shows up as BVH-traversal depth.

---

6. The finding the render captures do not explain

Look back at Scenario A:

Isaac Sim   Before Play: 96.71 avg FPS   →   Play & Run: 54.25 avg FPS
Unreal      Before Play: 100.01 avg FPS  →   Play & Run:  89.90 avg FPS

Isaac Sim loses 44 % of its frame rate the moment simulation starts — while, as shown above, GPU render cost barely moves. That delta is not in any of these Nsight captures, because Nsight captured the graphics queue.

The cost is on the other side of the frame: PhysX 5.0 articulation stepping, and USD stage update / Fabric synchronisation. Every simulated joint produces transform writes that must propagate through the stage before the renderer can consume them, and Kit’s update loop is where that happens.

This is the concrete consequence of the monitoring gap noted in §1 — we found the largest single performance effect in the entire PoC and could not attribute it, because there is no CPU-side instrumentation exported from the Kit runtime. It is the top item on the follow-up list for a reason.

---

7. Summary of trade-offs

Aspect	Unreal Engine	Isaac Sim
Frame rate (50 robots)	93–104 FPS	42–49 FPS
Frame time	7.67 ms	15.45 ms
Rendering model	Rasterization + Lumen SW-traced GI + VSM	RTX ray-traced GI, reflections, DLSS
Dominant frame cost	Global SDF rebuild (2.14 ms, moving geometry)	RT reflections (3.3–4.5 ms, fixed per-pixel)
Scaling behaviour	Scales with draw calls + moving geometry	Scales with pixels + ray depth
Memory profile	Low bandwidth, high L2 hit-rate (95.5 %)	Write-dominant, 27–34 % VRAM throughput
GPU bound by	Submission / warp packing	Memory latency (BVH traversal, incoherent access)
Physics	Chaos	PhysX 5.0
Robotics integration	Plugin / bridge work required	Native ROS/ROS2, RGB-D / LiDAR / IMU sensors
Synthetic data	Roll your own	Replicator — segmentation GT + domain randomization
Scene interop	Proprietary asset DB	OpenUSD + Nucleus versioning

The headline is easy to state and easy to misread: Unreal renders this scene about 2× faster. The correct reading is that the two runtimes are bound by different things, both are running well under 20 % SM throughput on a 4090, and neither frame time is anywhere near a hardware limit. This is a configuration difference far more than a capability difference.

---

8. Recommendation

Isaac Sim where the simulation is the product:

• Robotics simulation and controller testing (PhysX 5.0 articulations)
• Synthetic data generation for perception training (Replicator, segmentation GT, domain randomization)
• Physically-accurate sensor simulation — RGB-D, LiDAR, IMU
• Anything with a ROS/ROS2 requirement
• Digital twin with OpenUSD/Nucleus as the asset system of record

Unreal Engine where the image is the product:

• High-fidelity visualization, cinematics, stakeholder-facing demos
• Interactive applications with a hard >60 FPS budget
• Teams already invested in the Unreal ecosystem

What we are actually proposing: not a choice — a split. Isaac Sim as the physics and sensor authority, Unreal as a visualization client, coupled over USD via Omniverse Connect. Each side then runs in the regime it is good at, and the 2× render gap stops being a decision input, because Isaac Sim runs headless with rendering disabled for the RL/data-generation workloads where throughput actually matters.

Before committing, the cheap wins are worth taking on both sides:

• Isaac Sim — cap RT reflection roughness cutoff and sample count. That is a ~30 % frame-time line item under direct control.
• Unreal — disable Lumen for the twin workload (recovers the 2.14 ms SDF rebuild), and enable instancing/Nanite on the imported robot meshes to kill the 10,733 draw calls.

---

9. Open items

Ranked by how much they would change the conclusions:

1. CPU / memory profiling instrumentation. The 96 → 54 FPS drop at simulation start (§6) is the largest unexplained effect in the PoC and it is entirely CPU-side. Nsight Systems trace of the Kit update loop, isolating PhysX stepping from USD/Fabric sync.
2. Re-run with locked camera and matched lighting. The Scenario A/B inconsistency (§5c) and the Point-vs-Rect light mismatch (§2) both cap how far these numbers can be pushed. Fixed-path flythrough, identical light type, on both sides.
3. Build a monitoring extension for Kit. No structured per-subsystem timing export exists. For production this is a blocker, and Kit’s service-facility model (metrics is already a first-class facility) is the right place to hang it.
4. Initialization latency. Time from Play to first stepped simulation frame — untouched so far, and it dominates iteration speed in practice.
5. Sequence storage footprint. Bytes-per-frame for recorded sequences, which determines whether long-horizon captures are viable at all.
6. Scaling curve, not points. Sweep robot count (1 / 10 / 50 / 200) and sensor configuration. Two data points cannot distinguish linear from constant scaling — and §5 suggests Isaac Sim’s render cost may be close to constant, which would be the strongest argument in its favour.

---

Closing note

The one lesson I would carry out of this PoC: frame rate is a scalar summary of a vector quantity. Isaac Sim “lost” by 2× on FPS while being bound by ray-traced reflection cost that is a slider, and Unreal “won” while spending 28 % of its frame rebuilding a distance field for GI we do not need. Neither of those facts is visible from the frame counter, and both change the decision.

Profile the frame, not the number.
